- Stock: 1
- Brand: Nakashima Propeller
- Model: NPC 1738686
- Weight: 16.70kg
- Dimensions: 55.00cm x 55.00cm x 20.00cm
Nakashima OEM Series

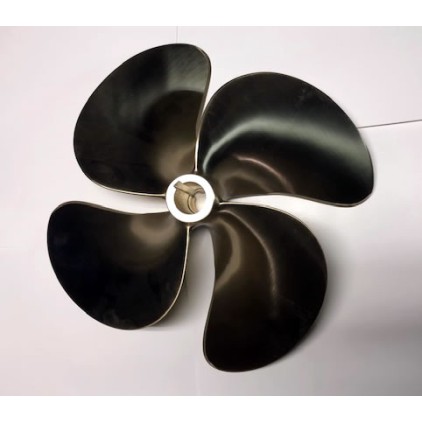

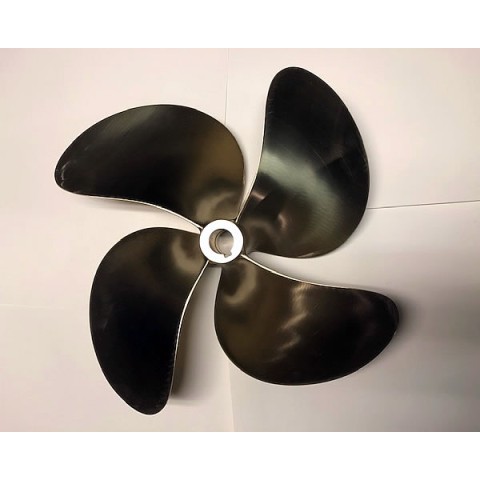

22 inch diameter, 23 inch pitch, 4 blade propeller.
Machined with 1 1/2" standard taper bore, and 3/8" keyway to fit 1 1/2" diameter prop shafts.
Part Number 1738686. Standard propeller for Bayliner and Meridian yachts
Also fits many other applications.
Manufactured in high strength, corrosion resistant NiBrAl material.
The increased strength allows for thinner blades which increases the propeller performance.
This propeller has 0.75 blade area ratio, suitable for pleasure yachts
If your specifications are not available in the options, or you have any special requirements, please let us know by using the "Ask a Question" tab before you order.
In most cases, inboard propellers are not returnable due to the fact that they are custom machined for your specific vessel.
It is very important to make sure the dimensions are correct before you order.
| Dimensions | |
| Diameter | 22" (inches) |
| Pitch | 23" (inches) |
| Rotation | Left Hand |
| No. of Blades | 4 (four) |
| Material | |
| NiBrAl | High strength Nickel Aluminum Bronze. More corrosion resistant than standard manganese bronze. |
| Bore | |
| SAE standard taper | 1 1/2" bore with 3/8" keyway |
| Blade Area Ratio | |
| BAR | 0.75 |
